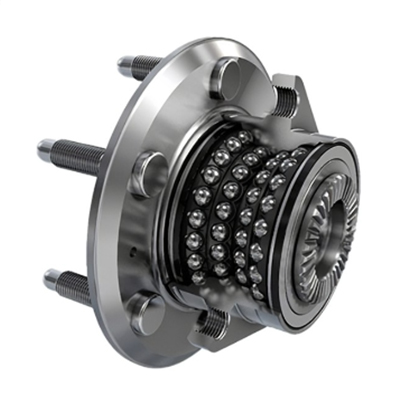

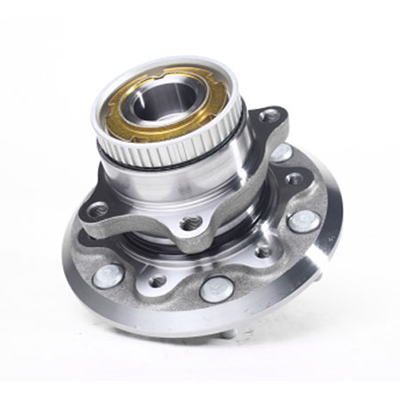

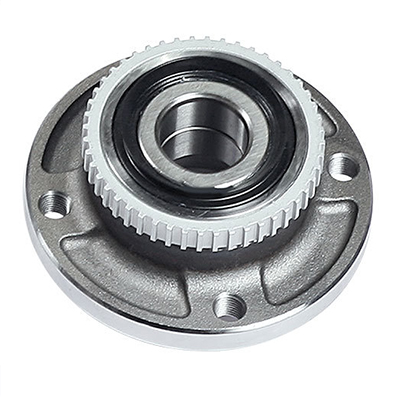

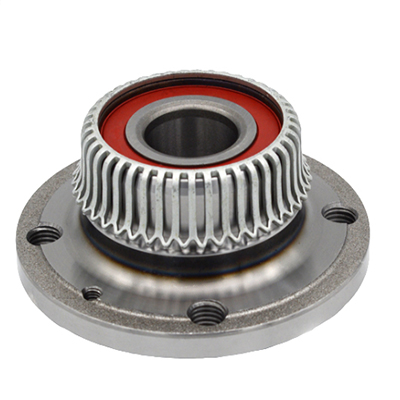

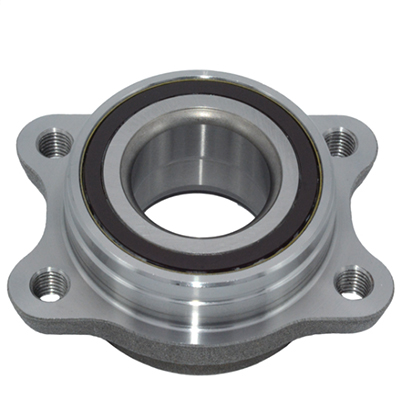

    Подшипники автомобильных колес второго поколения серии DACF

    Основная функция подшипников ступицы – нести вес и обеспечивать точное руководство вращением ступицы. Он выдерживает осевые и радиальные нагрузки и является очень важной частью автомобиля.

     Свяжитесь с нами

    Описание продукции

      Unit No. 外形尺寸   Dimensions      (mm) 法兰盘参数  Outer Ring Flange
    IB d f b t e m g k h i j 螺栓规格 螺栓孔直径 数量 法兰盘形状
    Bolt Size Bolt Hole Dia. Q’ty Shape of Flange
    DACF01 30 117 37 61.3 58 46.8 98 71.8 17 44.3 11 － M12×1.25 4 A
    DACF01-1 30 117 37 61.3 58 46.8 98 71.8 17 44.3 11 － M12×1.25 4 A
    DACF01-2 30 117 37 61.3 58 52 98 67 17 44.3 11 – M12×1.25 4 A
    DACF02 28 140.8 50.5 71 56 47.8 100 66.6 14 57 10.5 M12×1.5 Φ12.0 4 A
    DACF03ABS 31 120 40 61 57 50.5 100 73.8 19 42 12 － M12×1.5 4 A
    DACF04ABS 35 137 45 74 65 57 110 81 25 49 12 － M12×1.5 5 A
    DACF05 35 137 45 69.5 65 53.3 108 81 20.5 49 12 M12×1.5 Φ13.3 5 A
    DACF05ABS 35 137 45 69.5 65 53.3 108 81 20.5 49 12 M12×1.5 Φ13.3 5 A
    DACF06ABS 37 139 45 64 72.5 66 120 84 19 45 11 － M12×1.5 5 A
    DACF06-1ABS 37 139 45 64 72.5 66 120 80 19 45 11 － M12×1.5 5 A
    DACF06-2ABS 37 139 45 64 72.5 66 120 80 19 45 11 － M12×1.5 5 A
    DACF07 43 － 44 44 82.8 － 102 86 16.5 27.5 15 － M10×1.25 4 C
    DACF08 25 133 43 73.4 60 54.25 108 71 19.4 54 12.25 M12×1.5 Φ14.22 5 A
    DACF09 25 132.6 43 73.4 60 54.3 100 78 19.4 54 12 － M12×1.5 4 A
    DACF09ABS 25 132.6 43 73.4 60 54.3 100 78 19.4 54 12 － M12×1.5 4 A
    DACF10 27 148 55 73 66 52 114.3 64 15.5 57.5 11.5 － Φ14.0 4 A
    DACF10-1 27 148 55 73 66 52 114.3 64 15.5 57.5 11.5 M12×1.25 Φ14.0 4 A
    DACF11 28 － 42 52 － 61 97 66.2 － 52 7.5 － Φ10.5 4 C
    DACF12 28 139 38 64.5 67 58 114.3 70 14 50.5 9 － Φ14 4 A
    DACF13 28 140 48 70.5 67 59 114.3 63 14 50.5 9 M12×1.5 Φ14 4 A
    DACF14 30 － 42 － － 63 99 68.2 － 51.8 7.5 － Φ10.5 4 C
    DACF15 30 122 47 59.5 54 48 100 68 13.5 56 8 M12×1.5 Φ12.56 4 A
    DACF16 30 126 59 79 56 50.5 100 65.5 14.5 62.5 10 M12×1.25 Φ14 5 A
    DACF17 30 131 43 71.3 65 59 108 76 19 51 13.5 － M12×1.5 4 A
    DACF18ABS 30 136 41 66.5 56 51 100 68.5 11.5 55 8 M12×1.5 Φ12 4 A
    DACF19 30 136 40 66 56 51 100 68.5 11.5 54.5 8 M12×1.5 Φ12.1 4 A
    DACF20 30 140 50 70.5 67 59 114.3 68.9 14 56.5 9 M12×1.5 Φ14 4 A
    DACF21 30 125 50 70.5 56 50 100 68.9 14 56.5 10 M12×1.5 Φ14 4 A
    DACF22 30 152 41 67.5 64 58 114.3 67 11.5 56 9.5 M12×1.5 Φ12 4 B
    DACF22-1ABS 30 152 59 68.5 64 58 114.3 67 12.5 56 9.5 M12×1.5 Φ12 4 B
    DACF23 30 － 42 － － 63 99 72 － 58.8 7.5 － Φ10.5 4 C
    DACF24 30 － 50 54 66 58.3 90 68 10 44 10 － M10×1.25 4 C
    DACF25 30 － 42 － － 63 99 73.6 － 51.8 7.5 － Φ10.5 4 C
    DACF26 33 140 47 71.2 67 59 114.3 77 14 54.7 9 M12×1.5 Φ14 5 A
    DACF27 34 139 42 64.5 67 58 114.3 74 14 50.5 9 M12×1.5 Φ14 4 A
    DACF28 34 139.5 42 70 64 58 114.3 75 15 55 9 M12×1.5 Φ12.1 4 A
    DACF29 34.5 139 52 65.5 63.26 58 107.95 86 13.5 52 10 M12×1.5 Φ13.1 5 A
    DACF30 36 140 50 71 67 59 114.3 79 14 57 11 M12×1.5 Φ14 5 A
    DACF31 38 146.5 52 77 70 64 114.3 76.8 15 62 9 M12×1.5 Φ12.1 5 A
    DACF32 40 － 43 43 84 － 106 84 16.4 26.5 10 － M12×1.25 4 C
    DACF33 32 128 34 58.2 65 60 108 80 16 42.2 12.5 － M12×1.25 4 A
    DACF34 28 120 40 55.5 60 47 100 66 6 49.5 9 Φ12.0 4 A
    DACF34ABS 28 120 40 55.5 60 47 100 66 6 49.5 9 Φ12.0 4 A
    DACF34-1 28 120 40 55.5 60 47 100 66 6 49.5 9 M12×1.25 Φ12.0 4 A
    DACF34-1ABS 28 120 40 55.5 60 47 100 66 6 49.5 9 M12×1.25 Φ12.0 4 A
    DACF34-2 28 120 40 55.5 60 47 100 65 6 49.5 9 M12×1.25 Φ12.0 4 A
    DACF34-3 28 120 40 55.5 60 47 100 65 6 49.5 9 M12×1.25 Φ12.0 4 A
    DACF35 28 134 40 67.5 60 51 114.3 66 18 49.5 9 Φ12.0 4 A
    DACF35ABS 28 134 40 67.5 60 51 114.3 66 18 49.5 9 Φ12.0 4 A
    DACF35-1 28 134 40 67.5 60 51 114.3 66 18 49.5 9 M12×1.25 Φ12.0 4 A
    DACF35-1ABS 28 134 40 67.5 60 51 114.3 66 18 49.5 9 M12×1.25 Φ12.0 4 A
    DACF36ABS 30 120 37 63.5 57 51.85 100 69.5 19 44.5 10.5 － M14×1.5 5 A
    DACF37 27 134 50 67.5 59 52 100 64 15 52.5 9 － Φ14.0 4 A
    DACF37-1 27 134 50 67.5 59 52 100 64 15 52.5 11 M12×1.25 Φ14.0 4 A
    DACF38 － 125.7 40 74.8 56.85 49.8 100 – 16.8 58 9 M12×1.5 Φ12.0 5 A
    DACF39 28 134 40 63.5 60 51 114.3 64 20 43.5 9 M12×1.5 Φ12.0 4 A
    DACF40ABS 30 117 37 61.6 58 52 98 66.5 17 44.6 11 － M12×1.25 4 A
    DACF41 28 134 40 61 56 51 100 66 11.5 49.5 9 M12×1.5 Φ12.0 4 A
    DACF42 30 117 37 56.2 59 51.6 98 6 43.2 10 － M12×1.25 4 A
    DACF43 28 120 40 55.5 60 47 100 66 6 49.5 9 M12×1.5 Φ12.0 4 A
    DACF44 32 129 38 59.3 65 60 108 76.2 17 42.3 12 － M12×1.25 4 A
    DACF47 28 125.5 48 70.5 56 49.6 100 65 14 56.5 10 M12×1.5 Φ12.0 4 A
    DACF48 30 － 42 52 － 63 99 72 － 52 7.5 － Φ10.5 4 C
    DACF49 30 148 48 66.7 66 59 114.3 68 17.7 48.9 9.5 M12×1.25 Φ12.0 5 A
    DACF49ABS 30 148 48 66.7 66 59 114.3 68 17.7 48.9 9.5 M12×1.25 Φ12.0 5 A
    DACF53ABS 28 135 47 70.7 56.8 51.35 100 68.5 11.7 59 8 M12×1.5 Φ12.0 5 A
    DACF54ABS 32 128 38 59 65 60 108 78 17 42 11 － M12×1.25 5 A
    DACF55 31 120 41 61 57 50.5 100 72 19 42 12.5 － M12×1.5 4 A
    DACF56ABS 30 130 43 65 65 59 108 77 12.5 52.5 13 － M14×1.5 4 A
    DACF57ABS 37 139 45 64 72.5 66 120 81.6 19 45 11 － M12×1.5 5 A
    DACF58 30 148 48 64.5 59 52 100 72 15.5 49 12 M12×1.25 Φ9.0 4 A
    DACF59 45 124 41 41 90 － 106 88 3.8 37.2 10.5 － M10×1.0 4
    DACF60 28 125.5 48 70.5 56 49.6 100 61 14 56.5 10 M12×1.5 Φ14.0 4 A
    DACF62 30 148 48 64.5 66 52 114.3 72.8 15.5 49 12 M12×1.25 Φ14.0 4 A
    DACF64ABS 27 148 50 68 66 59 114.3 64 15.5 52.5 11.5 M12×1.25 Φ14.0 4 A
    DACF65ABS 28 120 39 63.5 57 51.85 100 69.5 20 41.5 10.5 － M12×1.5 4 A
    DACF66ABS 28 135.3 40 62.8 56.8 51.35 100 68.5 10.3 49.5 9 M12×1.5 Φ12.0 5 A
    DACF67 27 134 40 60 59 50 100 64.3 15 45 10.5 － Φ14.0 4 A
    DACF67-1 27 134 40 60 59 50 100 64.3 15 45 10.5 M12×1.25 Φ14.0 4 A
    DACF68 30 120 37 61.5 57 51.85 100 69.5 19 41 10.5 － M12×1.5 4 A
    DACF69 30 139 56 67.5 61 30 100 66 11.5 56.5 9 M12×1.5 Φ12.0 4 A
    DACF70ABS 25 133 43 77.5 60 54 108 67 19.5 54 13 － M14×1.5 5 A
    DACF71ABS 30 142 55 82 56.4 48 114.3 68 14 62 12.5 M12×1.5 Φ12.0 5 A
    DACF72ABS 30 122 46 70 57 48 100 67 14 56 10 M12×1.5 Φ12.0 4 A
    DACF73 30 117 37 50.3 59 46.8 98 70.5 6 44.3 10 – M12×1.25 4 A
    DACF74 30 117 37 63.8 58 47.5 98 72.3 18.5 45.3 11 – M12×1.25 4 A
    DACF75ABS 28 134 31 47 57 51 112 57 12.5 34.5 10 – M12×1.5 3 A
    DACF76 30 117 37 52.9 59 51.6 98 67.8 6 43.2 10 – M12×1.25 4 A
    DACF77 35 137 42 49 – 62 110 75 – 49 12 – Φ12.0 4 A
    DACF78 35 136 42 72.5 63.27 56.37 108 77 20.5 51.6 10 M12×1.5 Φ14.0 4 A
    DACF78ABS 35 136 42 72.5 63.27 56.37 108 74 20.5 51.6 10 M12×1.5 Φ14.0 4 A
    DACF79ABS 35 116.5 37 65 58 52 98 73 16.5 46 11.5 – M12×1.25 5 A
    DACF80ABS 37 151.3 52 75.9 70.46 64 114.3 81.6 21 54.9 13 1/2-20UNF Φ14.5 5 A
    DACF81 28 139 38 64.5 67 57.68 114.3 62.93 14 50.5 9 M12×1.5 Φ14.0 4 A
    DACF81ABS 28 139 38 64.5 67 57.68 114.3 62.93 14 50.5 9 M12×1.5 Φ14.0 4 A
    DACF82ABS 28 139 38 64.5 67 57.68 114.3 63 14 , , 9 M12×1.5 Φ14.0 4 A
    50.5
    DACF83 28 140 38 64.5 54 47.7 100 67 14 50.5 10 M12×1.5 Φ14.0 4 A
    DACF83ABS 28 140 38 64.5 54 47.7 100 67 14 50.5 10 M12×1.5 Φ14.0 4 A
    DACF85ABS 35 136 45 68 65 53.3 108 75 19.3 48.7 12 M12×1.5 Φ13.3 5 A
    DACF86 36 140 62 77.7 67 60 114.3 78 18.7 61 10 M12×1.5 Φ14.0 5 A
    DACF87ABS 30 122 47 69.5 54 48 100 64.9 13.5 56 9 M12×1.5 Φ12.0 4 A
    DACF103-1 28 140 38 51.5 – 64.1 101.6 69.9 – 51.5 9 – M12×1.5 4 A
    DACF06-1ABS-A-K 37 139 45 64 72.5 66 120 80 19 45 11 － M12×1.5 5 A
    DACF100-B 34 140 37 50.5 － 70 100 69.6 － 50.5 9 － M12×1.5 4 A
    DACF103-1 28 140 38 51.5 － 70 101.6 69.6 － 51.5 9 － M12×1.5 4 A
    DACF103-2 28 140 38 51.5 – 64.1 100 69.9 – 51.5 9 – M12×1.5 4 A
    DACF18ABS-1 30 136 41 66.5 56 51 100 68.5 11.5 55 8 M12×1.5 Φ12 4 A
    DACF33A 32 128 34 58.2 65 60 108 80 16 42.2 12.5 M12×1.25 4 A
    DACF33-K 32 128 34 58.2 65 60 108 80 16 42.2 12.5 － M12×1.25 4 A
    DACF34-2 28 120 40 55.5 60 47 100 65 6 49.5 9 M12×1.25 Φ12.0 4 A
    DACF34-3 28 120 40 55.5 60 47 100 65 6 49.5 9 M12×1.25 Φ12.0 4 A
    DACF34-4 28 120 40 55.5 60 47 100 65 6 49.5 9 M12×1.25 Φ12.0 4 A
    DACF49-1ABS 30 148 48 66.7 66 59 114.3 68 17.7 48.9 9.5 M12×1.25 Φ12.0 5 A
    DACF59ABS 45 124 41 41 90 － 106 88 3.8 37.2 10.5 － M10×1.0 4
    DACF62ABS 30 148 48 64.5 66 52 114.3 72.8 15.5 49 12 M12×1.25 Φ14.0 4 A
    DACF63ABS 37 139 45 64 72.5 66 120 80 19 45 11 － M12×1.5 5 A
    DACF67-1 27 134 40 60 59 50 100 64.3 15 45 10.5 M12×1.25 Φ14.0 4 A
    DACF85ABS-K 35 136 45 68 65 53.3 108 75 19.3 48.7 12 M12×1.5 Φ13.3 5 A
    DACF88 30 122 47 69.5 54 48 100 68.43 13.5 56 8 M12×1.5 Φ12.0 4 A
    DACF89ABS 36 140 62 79.7 67 60 114.3 78 18.7 61 10 M12×1.5 Φ12.0 5 A
    DACF90 – 126.5 – 82.5 57 52 100 – 19 64 10 – M14×1.5 5 A
    DACF90ABS – 126.5 – 82.5 57 52 100 – 19 63.5 10 – M14×1.5 5 A
    DACF91 30 117 37 61.6 58 52 98 72.3 16.5 45.1 11 – M12×1.25 4 A
    DACF92 20 78 20.6 20.6 49 – 64 47 7.8 12.8 5 – Φ6.8 3 D
    DACF93ABS 30 148 48 66.7 66 59 114.3 67 17.7 49 10.5 M12×1.25 Φ12 5 A
    DACF94ABS 27 148 50 68 66 59 114.3 64 15.5 52.5 11.5 M12×1.25 Φ14 4 A
    DACF97 40 116 56 56 93 – 104 90 17 39 12 – Φ6.5 8 A
    DACF99ABS-1 － 149.5 － 102.65 65 55.5 120 － 22.75 79.9 16.5 M14×1.5 5 A
    Second Generation Hub Units
    Unit No. Unit No. Unit No. Unit No.
    DACF1083CR 52710-22400 28BWK12 DACF1041
    BAFB633807D 52710-29400 HUB065/15 DACF1041JR
    DACF1083CR-1 DACF310203 HUB065/15 ABS HUB048-35
    633622-1 513202 HUB081-44 HUB048-35ABS
    633622 578413 HUB083-15 HUB042-32
    633622-2 580494 HUB083-15ABS 800179B
    633622-3 3502950 HUB008 36BWK02ABS
    TGB12095 BAF0006D HUB008ABS DACF1050B JH
    TGB12095S49 BAF0013E HUB005-39 BAF0066D
    IR 8688 DACF20023 HUB005-39ABS HUB002
    800179D BAF-4104E HUB184 DACF1086
    801191E BAF-0095B HUB184ABS DACF1023D
    35016 DACF1005C 27BWK06 HUB294
    DACF1050B DACF1005CABS HUB188-6 512025
    28BWK08g DACF1018L HUB188-6ABS BE00700
    57210-25000 DACF1033K HUB280 DACF1050E
    57210-25100 DACF1033K-1 HUB280-1 TGB40175S05
    52710-2D000 DACF1033K-2 TGB12894 BAF4047D
    52710-2D115 DACF1091 27BWK03 30BWK06
    52710-29XXX DACF1092 27BWK03ABS HUB066ABS
    52710-29450 DACF1097 30BWK10
