переходная муфта

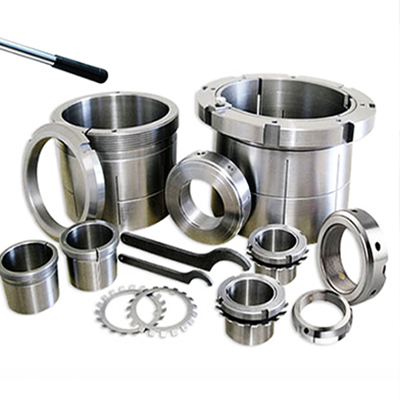

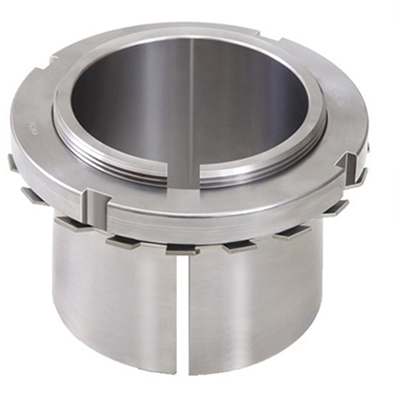

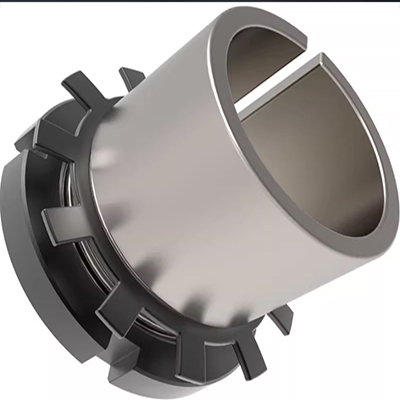

Втулка адаптера является наиболее часто используемым компонентом, используемым для позиционирования подшипников с коническими отверстиями на цилиндрическое основание, так как они могут использоваться для обычной оси или ступенчатой оси.

Свяжитесь с нами

Описание продукции

Они легко устанавливаются и не требуют дополнительного расположения на оси. При использовании для обычной оси подшипник может находиться в любом месте на оси. При использовании с L – образным интервальным кольцом для ступенчатой оси подшипник может быть точно ориентирован на ось, что облегчает установку и демонтаж подшипника.

Designation	Principal dimensions			Included products
				Lock nut	Locking device
	d₁[mm]	d [mm]	B₁ [mm]
H 204	17	20	24	KM 4	MB 4
H 304	17	20	28	KM 4	MB 4
H 205	20	25	26	KM 5	MB 5
H 2305	20	25	35	KM 5	MB 5
H 305	20	25	29	KM 5	MB 5
H 305 E	20	25	29	KMFE 5
H 206	25	30	27	KM 6	MB 6
H 2306	25	30	38	KM 6	MB 6
H 306	25	30	31	KM 6	MB 6
H 306 E	25	30	31	KMFE 6
H 207	30	35	29	KM 7	MB 7
H 2307	30	35	43	KM 7	MB 7
H 307	30	35	35	KM 7	MB 7
H 307 E	30	35	35	KMFE 7
H 208	35	40	31	KM 8	MB 8
H 2308	35	40	46	KM 8	MB 8
H 2308 E	35	40	46	KMFE 8
H 308	35	40	36	KM 8	MB 8
H 308 E	35	40	36	KMFE 8
H 209	40	45	33	KM 9	MB 9
H 2309	40	45	50	KM 9	MB 9
H 309	40	45	39	KM 9	MB 9
H 309 E	40	45	39	KMFE 9
H 210	45	50	35	KM 10	MB 10
H 2310	45	50	55	KM 10	MB 10
H 310	45	50	42	KM 10	MB 10
H 310 E	45	50	42	KMFE 10
H 211	50	55	37	KM 11	MB 11
H 2311	50	55	59	KM 11	MB 11
H 311	50	55	45	KM 11	MB 11
H 311 E	50	55	45	KMFE 11
H 212	55	60	38	KM 12	MB 12
H 2312	55	60	62	KM 12	MB 12
H 312	55	60	47	KM 12	MB 12
H 312 E	55	60	47	KMFE 12
H 213	60	65	40	KM 13	MB 13
H 2313	60	65	65	KM 13	MB 13
H 2313 E	60	65	65	KMFE 13
H 2314	60	70	68	KM 14	MB 14
H 313	60	65	50	KM 13	MB 13
H 313 E	60	65	50	KMFE 13
H 314	60	70	52	KM 14	MB 14
H 314 E	60	70	52	KMFE 14
H 215	65	75	43	KM 15	MB 15
H 2315	65	75	73	KM 15	MB 15
H 315	65	75	55	KM 15	MB 15
H 315 E	65	75	55	KMFE 15
H 216	70	80	46	KM 16	MB 16
H 2316	70	80	78	KM 16	MB 16
H 316	70	80	59	KM 16	MB 16
H 316 E	70	80	59	KMFE 16
H 217	75	85	50	KM 17	MB 17
H 2317	75	85	82	KM 17	MB 17
H 317	75	85	63	KM 17	MB 17
H 317 E	75	85	63	KMFE 17
H 218	80	90	52	KM 18	MB 18
H 2318	80	90	86	KM 18	MB 18
H 2318 E/L73	80	90	73	KMFE 18
H 318	80	90	65	KM 18	MB 18
H 318 E	80	90	65	KMFE 18
H 219	85	95	55	KM 19	MB 19
H 2319	85	95	90	KM 19	MB 19
H 319	85	95	68	KM 19	MB 19
H 220	90	100	58	KM 20	MB 20
H 2320	90	100	97	KM 20	MB 20
H 2320 E	90	100	97	KMFE 20
H 3120	90	100	76	KM 20	MB 20
H 3120 E	90	100	76	KMFE 20
H 320	90	100	71	KM 20	MB 20
H 320 E	90	100	71	KMFE 20
H 222	100	110	63	KM 22	MB 22
H 2322	100	110	105	KM 22	MB 22
H 2322 E	100	110	105	KMFE 22
H 3122	100	110	81	KM 22	MB 22
H 3122 E	100	110	81	KMFE 22
H 322	100	110	77	KM 22	MB 22
H 322 E	100	110	77	KMFE 22
H 2324	110	120	112	KM 24	MB 24
H 2324 E	110	120	112	KMFE 24
H 2324 EH	110	120	112	KMFE 24 H
H 2324 L	110	120	112	KML 24	MBL 24
H 3024	110	120	72	KML 24	MBL 24
H 3024 E	110	120	72	KMFE 24
H 3124	110	120	88	KM 24	MB 24
H 3124 L	110	120	88	KML 24	MBL 24
H 2326	115	130	121	KM 26	MB 26
H 2326 L	115	130	121	KML 26	MBL 26
H 3026	115	130	80	KML 26	MBL 26
H 3026 E	115	130	80	KMFE 26
H 3126	115	130	92	KM 26	MB 26
H 3126 L	115	130	92	KML 26	MBL 26
H 2328	125	140	131	KM 28	MB 28
H 3028	125	140	82	KML 28	MBL 28
H 3028 E	125	140	82	KMFE 28
H 3128	125	140	97	KM 28	MB 28
H 3128 L	125	140	97	KML 28	MBL 28
H 2330	135	150	139	KM 30	MB 30
H 2330 L	135	150	139	KML 30	MBL 30
H 3030	135	150	87	KML 30	MBL 30
H 3030 E	135	150	87	KMFE 30
H 3130	135	150	111	KM 30	MB 30
H 3130 E	135	150	111	KMFE 30
H 3130 L	135	150	111	KML 30	MBL 30
H 2332	140	160	147	KM 32	MB 32
H 2332 L	140	160	147	KML 32	MBL 32
H 3032	140	160	93	KML 32	MBL 32
H 3032 E	140	160	93	KMFE 32
H 3132	140	160	119	KM 32	MB 32
H 3132 E	140	160	119	KMFE 32
H 3132 L	140	160	119	KML 32	MBL 32
H 2334	150	170	154	KM 34	MB 34
H 3034	150	170	101	KML 34	MBL 34
H 3034 E	150	170	101	KMFE 34
H 3134	150	170	122	KM 34	MB 34
H 3134 E	150	170	122	KMFE 34
H 3134 L	150	170	122	KML 34	MBL 34
H 2336	160	180	161	KM 36	MB 36
H 3036	160	180	109	KML 36	MBL 36
H 3036 E	160	180	109	KMFE 36
H 3136	160	180	131	KM 36	MB 36
H 3136 L	160	180	131	KML 36	MBL 36
H 3936	160	180	87	KML 36	MBL 36
H 2338	170	190	169	KM 38	MB 38
H 3038	170	190	112	KML 38	MBL 38
H 3138	170	190	141	KM 38	MB 38
H 3938	170	190	89	KML 38	MBL 38
H 2340	180	200	176	KM 40	MB 40
H 3040	180	200	120	KML 40	MBL 40
H 3140	180	200	150	KM 40	MB 40
H 3940	180	200	98	KML 40	MBL 40
OH 2344 H	200	220	186	HM 44 T	MB 44
OH 3044 H	200	220	126	HM 3044	MS 3044
OH 3144 H	200	220	161	HM 44 T	MB 44
OH 3144 HTL	200	220	161	HM 3044	MS 3044
OH 3944 H	200	220	96	HM 3044	MS 3044
OH 2348 H	220	240	199	HM 48 T	MB 48
OH 3048 H	220	240	133	HM 3048	MS 3052-48
OH 3048 HE	220	240	133	HME 3048	MS 3052-48
OH 3148 H	220	240	172	HM 48 T	MB 48
OH 3148 HTL	220	240	172	HM 3048	MS 3052-48
OH 3948 H	220	240	101	HM 3048	MS 3052-48
OH 2352 H	240	260	211	HM 52 T	MB 52
OH 3052 H	240	260	145	HM 3052	MS 3052-48
OH 3052 HE	240	260	145	HME 3052	MS 3052-48
OH 3152 H	240	260	190	HM 52 T	MB 52
OH 3152 HTL	240	260	190	HM 3052	MS 3052-48
OH 3952 H	240	260	116	HM 3052	MS 3052-48
OH 2356 H	260	280	224	HM 56 T	MB 56
OH 3056 H	260	280	152	HM 3056	MS 3056
OH 3156 H	260	280	195	HM 56 T	MB 56
OH 3156 HTL	260	280	195	HM 3056	MS 3056
OH 3956 H	260	280	121	HM 3056	MS 3056
OH 3060 H	280	300	168	HM 3060	MS 3060
OH 3160 H	280	300	208	HM 3160	MS 3160
OH 3160 HE	280	300	208	HME 3160	MS 3160
OH 3260 H	280	300	240	HM 3160	MS 3160
OH 3960 H	280	300	140	HM 3060	MS 3060
OH 3064 H	300	320	171	HM 3064	MS 3068-64
OH 3164 H	300	320	226	HM 3164	MS 3164
OH 3264 H	300	320	258	HM 3164	MS 3164
OH 3964 H	300	320	140	HM 3064	MS 3068-64
OH 3068 H	320	340	187	HM 3068	MS 3068-64
OH 3168 H	320	340	254	HM 3168	MS 3172-68
OH 3168 HE	320	340	254	HME 3168	MS 3172-68
OH 3268 H	320	340	288	HM 3168	MS 3172-68
OH 3968 H	320	340	144	HM 3068	MS 3068-64
OH 3072 H	340	360	188	HM 3072	MS 3072
OH 3172 H	340	360	259	HM 3172	MS 3172-68
OH 3172 HE	340	360	259	HME 3172	MS 3172-68
OH 3272 H	340	360	299	HM 3172	MS 3172-68
OH 3972 H	340	360	144	HM 3072	MS 3072
OH 3972 HE	340	360	144	HME 3072	MS 3072
OH 3076 H	360	380	193	HM 3076	MS 3080-76
OH 3176 H	360	380	264	HM 3176	MS 3176
OH 3176 HE	360	380	264	HME 3176	MS 3176
OH 3276 H	360	380	310	HM 3176	MS 3176
OH 3976 H	360	380	164	HM 3076	MS 3080-76
OH 3080 H	380	400	210	HM 3080	MS 3080-76
OH 3180 H	380	400	272	HM 3180	MS 3184-80
OH 3180 HE	380	400	272	HME 3180	MS 3184-80
OH 3280 H	380	400	328	HM 3180	MS 3184-80
OH 3980 H	380	400	168	HM 3080	MS 3080-76
OH 3084 H	400	420	212	HM 3084	MS 3084
OH 3184 H	400	420	304	HM 3184	MS 3184-80
OH 3284 H	400	420	352	HM 3184	MS 3184-80
OH 3984 H	400	420	168	HM 3084	MS 3084
OH 3984 HE	400	420	168	HME 3084	MS 3084
OH 3088 H	410	440	228	HM 3088	MS 3092-88
OH 3188 H	410	440	307	HM 3188	MS 3192-88
OH 3188 HE	410	440	307	HME 3188	MS 3192-88
OH 3288 H	410	440	361	HM 3188	MS 3192-88
OH 3988 H	410	440	189	HM 3088	MS 3092-88
OH 3092 H	430	460	234	HM 3092	MS 3092-88
OH 3192 H	430	460	326	HM 3192	MS 3192-88
OH 3292 H	430	460	382	HM 3192	MS 3192-88
OH 3992 H	430	460	189	HM 3092	MS 3092-88
OH 3096 H	450	480	237	HM 3096	MS 30/500-96
OH 3196 H	450	480	335	HM 3196	MS 3196
OH 3196 HE	450	480	335	HME 3196	MS 3196
OH 3296 H	450	480	397	HM 3196	MS 3196
OH 3996 H	450	480	200	HM 3096	MS 30/500-96
OH 30/500 H	470	500	247	HM 30/500	MS 30/500-96
OH 31/500 H	470	500	356	HM 31/500	MS 31/500
OH 32/500 H	470	500	428	HM 31/500	MS 31/500
OH 39/500 H	470	500	208	HM 30/500	MS 30/500-96
OH 30/530 H	500	530	265	HM 30/530	MS 30/600-530
OH 31/530 H	500	530	364	HM 31/530	MS 31/530
OH 32/530 H	500	530	447	HM 31/530	MS 31/530
OH 39/530 HE	500	530	216	HME 30/530	MS 30/600-530
OH 30/560 H	530	560	282	HM 30/560	MS 30/560
OH 31/560 H	530	560	377	HM 31/560	MS 31/600-560
OH 31/560 HE	530	560	377	HME 31/560	MS 31/600-560
OH 39/560 H	530	560	227	HM 30/560	MS 30/560
OH 39/560 HE	530	560	227	HME 30/560	MS 30/560
OH 30/600 H	560	600	289	HM 30/600	MS 30/600-530
OH 31/600 H	560	600	399	HM 31/600	MS 31/600-560
OH 32/600 H	560	600	487	HM 31/600	MS 31/600-560
OH 39/600 H	560	600	239	HM 30/600	MS 30/600-530
OH 30/630 H	600	630	301	HM 30/630	MS 30/630
OH 31/630 H	600	630	424	HM 31/630	MS 31/630
OH 31/630 HE	600	630	424	HME 31/630	MS 31/630
OH 39/630 H	600	630	254	HM 30/630	MS 30/630
OH 39/630 HE	600	630	254	HME 30/630	MS 30/630
OH 30/670 H	630	670	324	HM 30/670	MS 30/670
OH 31/670 H	630	670	456	HM 31/670	MS 31/670
OH 32/670 H	630	670	558	HM 31/670	MS 31/670
OH 30/710 H	670	710	342	HM 30/710	MS 30/710
OH 30/710 HE	670	710	342	HME 30/710	MS 30/710
OH 31/710 H	670	710	467	HM 31/710	MS 31/710
OH 31/710 HE	670	710	467	HME 31/710	MS 31/710
OH 32/710 H	670	710	572	HM 31/710	MS 31/710
OH 39/710 H	670	710	286	HM 30/710	MS 30/710
OH 39/710 HE	670	710	286	HME 30/710	MS 30/710
OH 30/750 H	710	750	356	HM 30/750	MS 30/800-750
OH 30/750 HE	710	750	356	HME 30/750	MS 30/800-750
OH 31/750 HE	710	750	493	HME 31/750	MS 31/800-750
OH 32/750 H	710	750	603	HM 31/750	MS 31/800-750
OH 30/800 H	750	800	366	HM 30/800	MS 30/800-750
OH 30/800 HE	750	800	366	HME 30/800	MS 30/800-750
OH 31/800 H	750	800	505	HM 31/800	MS 31/800-750
OH 31/800 HE	750	800	505	HME 31/800	MS 31/800-750
OH 39/800 H	750	800	303	HM 30/800	MS 30/800-750
OH 30/850 H	800	850	380	HM 30/850	MS 30/900-850
OH 30/850 HE	800	850	380	HME 30/850	MS 30/900-850
OH 31/850 HE	800	850	536	HME 31/850	MS 31/850
OH 39/850 H	800	850	308	HM 30/850	MS 30/900-850
OH 30/900 H	850	900	400	HM 30/900	MS 30/900-850
OH 30/900 HE	850	900	400	HME 30/900	MS 30/900-850
OH 39/900 H	850	900	326	HM 30/900	MS 30/900-850
OH 30/1000 H	950	1 000	430	HM 30/1000	MS 30/1000
OH 30/1000 HE	950	1 000	430	HME 30/1000	MS 30/1000
OH 31/1000 H	950	1 000	609	HM 31/1000	MS 31/1000
OH 31/1000 HE	950	1 000	609	HME 31/1000	MS 31/1000
OH 30/1060 H	1 000	1 060	447	HM 30/1060	MS 30/1000
OH 39/1060 H	1 000	1 060	372	HM 30/1060	MS 30/1000
